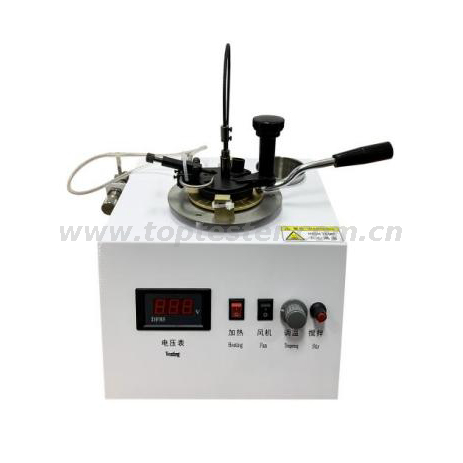

ASTM D93 Digital Closed Cup Flash Point Tester TPC-100

Rise Electric > Products > ASTM D93 Digital Closed Cup Flash Point Tester TPC-100

Application:

TPC-100 tests the flash point of petroleum products. It complies to the regulated methods of ASTM D93, SH/T 0315 Closed Cup Flash Point Tester Technical Conditions.



Features:

1.Highlighted LED timely displays voltage; with heating power continuously and step-less adjustable; temperature rising precision greatly improved.

2.With temperature rising adjustment button and air cooking control button.

3.Designed totally regarding national standard; stirring high and low speed two-way regulation.

High precision air valve adjustment, safe and reliable.



Technical parameter:

Heating device Heating power: 600W, continuously adjustable: 0-600W
Electric stirring device Motor and flexible axle jointing stirring; stirring vane: 8*40mm
Standard oil cup Inner diameter: 50.8mm; Depth: 56mm

Oil test capacity groove depth: 34.2mm

Oil test capacity: about 70ml
Ignition device Gas ignition.(or other civil use gases )
Thermometer



 Internal marked mercury thermometer; complies to GB514 standard.

(1) scale:-30~170°C; scale division: 1°C

(2) scale: 100~300°C; scale division: 1°C
Working power AC 220V±10％, 50Hz
Power consumption ≤650W
